Stay Protected with ClearShield Fire Attenuation Screens in Greater Sydney, Penrith & the Blue Mountains!



  • AVG Transmitted Radiation 27kW/m^{2}, AVG Blocked Irradiance 65%
  • An economical alternative to sprinkler systems
  • When tested, achieved a very large reduction of radiant heat
  • Satisfy the requirements of the AS1530.4-2014 standard

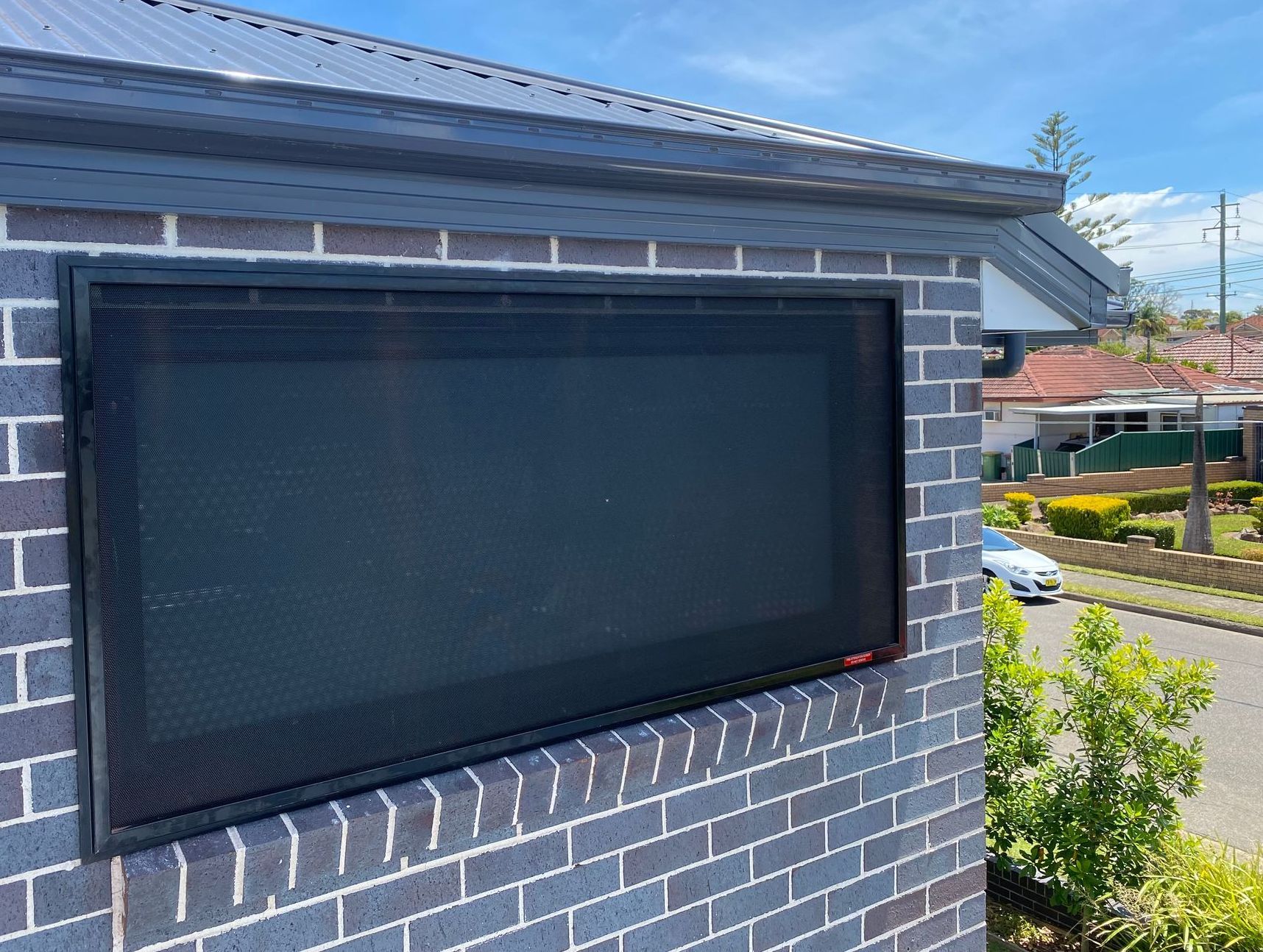

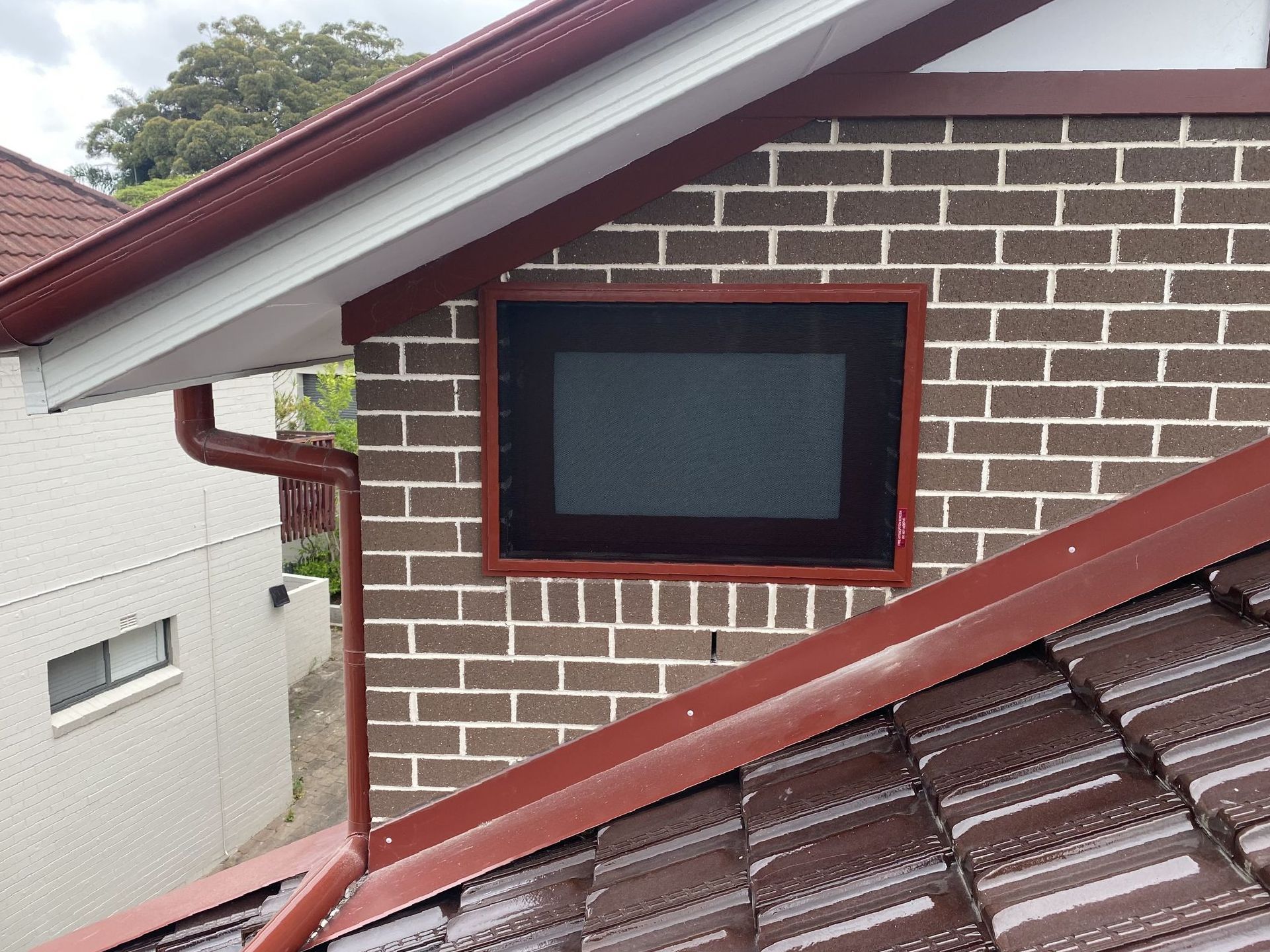

ClearShield’s Fire Attenuation Screens have been designed for applications to satisfy the requirements of AS1530.4-2014.


ClearShield’s Fire Attenuation Screens are an economical alternative to conventional drenching (sprinkler) systems, and they also offer a high level of security.

ClearShield Australia contracted the services of Warrington Fire Research Australia to test the ClearShield’s Fire Attenuation Screen and when tested, achieved a reduction of radiant heat of 52.3kW/m2 when exposed to Boundary* conditions (80kW/m2). That’s a massive 65% Attenuation of heat in the worst possible conditions (as indicated in the NCC)


* Clause B7.4.4 in AS1530.4(2014) specifies that if the opening to be protected is on the boundary of a property then the testing should be conducted at 80kW/m2

ClearShield Fire Screens – Technical Data

Aluminium Framing

Grade 6063-T6
Coating Anodised – min 15um to AS1213-
Powdercoating – Chromate Pre-treatment and powdercoated to AS3715-2002
Warranty As per Coating Selection

Stainless Steel Sheet

Grade: T304-2b
Finish: Satin Black Powder Coated
Warranty: 15 Years, subject to adhering to the recommended cleaning schedule
Coating: Powdercoating – Oxsilane Chrome Free Pre-treatment and powdercoated to AS3715-2002
Open Area: 39%-41%
Dimensions: Domestic Grade Ø 2mm Round Holes, 60° Staggered Pitch, 3mm Spacings, 1.0mm Thick

Compliance

Standard Date of test Test No. Details Result
AS1530.2014 28/10/2021 FRT210115 Test of CS Screen over 130mins exposed to 80kW/m² AVG Transmitted Radiation 27kW/m^{2}, AVG Blocked Irradiance 65%

Need more information about our Fire Attenuation Screens? Call 02 4721 5241
